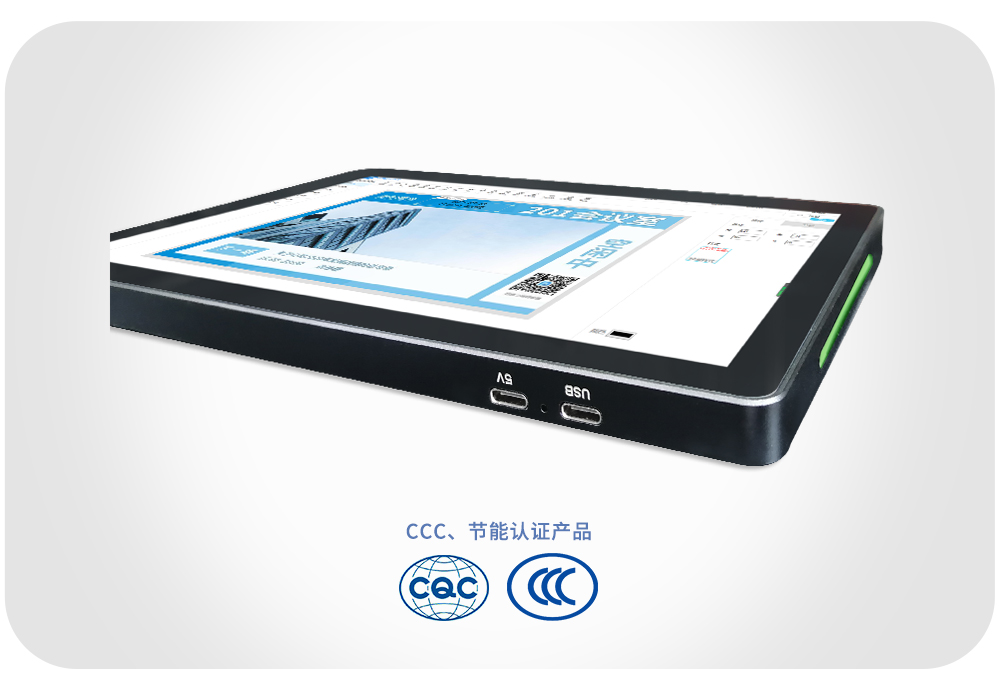

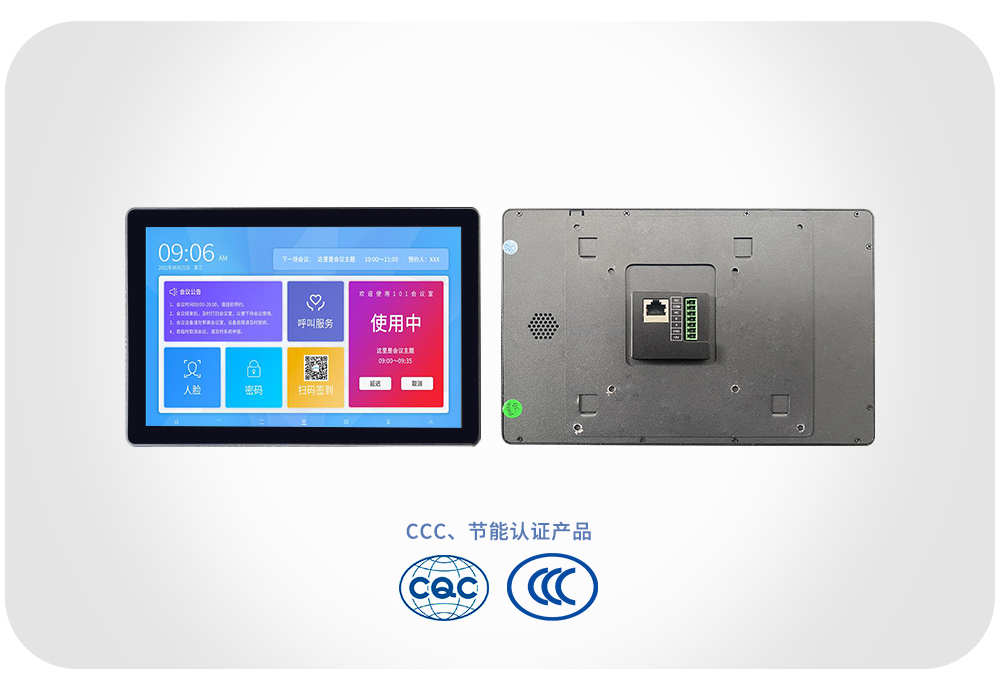

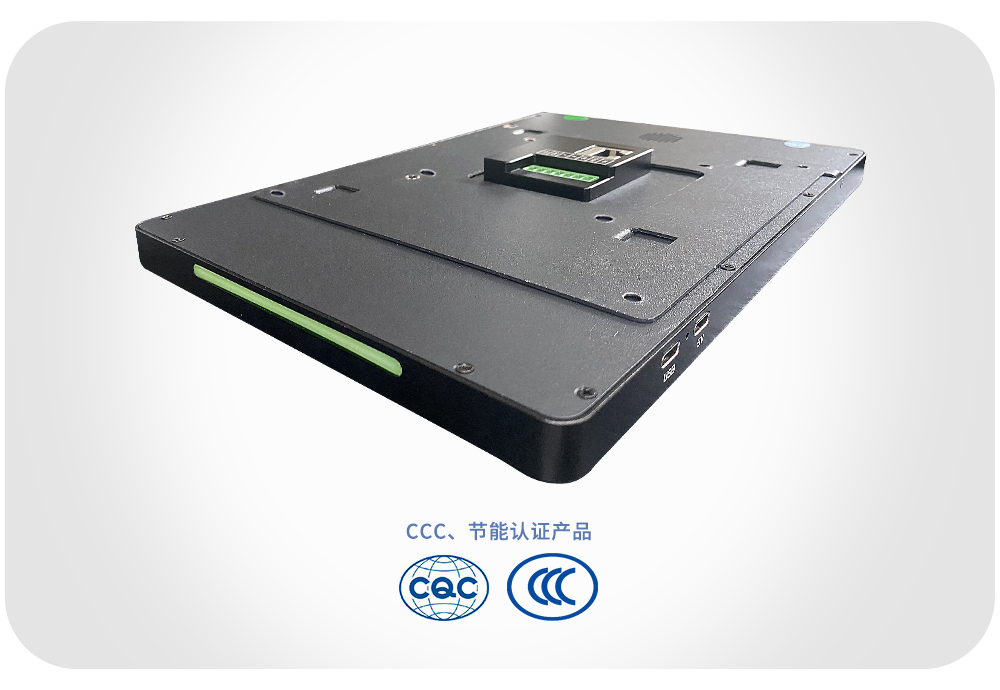

Conference house number

Conference house number

Dimensions (inches) : 8 ", 10 ", 13.3 ", 15.6 "(Adapter powered)
Dimensions (inches) : 8 ", 10 ", 13.3 ", 15.6 "(POE power supply)
Operating system: Android 11.0
Memory: 2G
Hard disk: 32G
  • Product description
  • Specification parameters
Category 8 inches 10.1 inches 13.3 inches 15.6 inches 8 inches 10.1 inches 13.3 inches 15.6 inches 8 inches 10.1 inches 13.3 inches 15.6 inches
Model ST08MP-A ST101MP-A ST133MP-A ST156MP-A ST08MP-PA ST101MP-PA ST133MP-PA ST156MP-PA ST08MP-PDA ST101MP-PDA ST133MP-PDA ST156MP-PDA
System Architecture Single system Single system Single system Single system Single system Single system Single system Single system Single system Single system Single system Single system
Operating System Android 11.0 Android 11.0 Android 11.0 Android 11.0 Android 11.0 Android 11.0 Android 11.0 Android 11.0 Android 11.0 Android 11.0 Android 11.0 Android 11.0
Processor Quad-core ARM Cortex-A55 architecture, frequency 2.0GHz Quad-core ARM Cortex-A55 architecture, frequency 2.0GHz Quad-core ARM Cortex-A55 architecture, frequency 2.0GHz Quad-core ARM Cortex-A55 architecture, frequency 2.0GHz Quad-core ARM Cortex-A55 architecture, frequency 2.0GHz Quad-core ARM Cortex-A55 architecture, frequency 2.0GHz Quad-core ARM Cortex-A55 architecture, frequency 2.0GHz Quad-core ARM Cortex-A55 architecture, frequency 2.0GHz Quad-core ARM Cortex-A55 architecture, frequency 2.0GHz Quad-core ARM Cortex-A55 architecture, frequency 2.0GHz Quad-core ARM Cortex-A55 architecture, frequency 2.0GHz Quad-core ARM Cortex-A55 architecture, frequency 2.0GHz
Memory 2G 2G 2G 2G 2G 2G 2G 2G 2G 2G 2G 2G
Hard disk 32G 32G 32G 32G 32G 32G 32G 32G 32G 32G 32G 32G
Panel IPS IPS IPS IPS IPS IPS IPS IPS IPS IPS IPS IPS
Resolution 1280 × 800 1920 × 1080 1920 × 1080 1920 × 1080 1280 × 800 1920 × 1080 1920 × 1080 1920 × 1080 1280 × 800 1920 × 1080 1920 × 1080 1920 × 1080
Brightness 350cd/㎡ 350cd/㎡ 350cd/㎡ 350cd/㎡ 350cd/㎡ 350cd/㎡ 350cd/㎡ 350cd/㎡ 350cd/㎡ 350cd/㎡ 350cd/㎡ 350cd/㎡
Visual Angle 178° 178° 178° 178° 178° 178° 178° 178° 178° 178° 178° 178°
Contrast 1000:1 1000:1 1000:1 1000:1 1000:1 1000:1 1000:1 1000:1 1000:1 1000:1 1000:1 1000:1
Scanning frequency 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz
Touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch
Camera None None None None None None None None 200W camera 200W camera 200W camera 200W camera
Power (W) 26W 26W 26W 26W 26W 26W 26W 26W 26W 26W 26W 26W
Power supply mode Adapter power supply Adapter power supply Adapter power supply Adapter power supply POE power supply POE power supply POE power supply POE power supply POE power supply POE power supply POE power supply POE power supply
Status light bar None None None None None None None None There are There are There are There are
Display Size (mm) 173.1(W)×109(H) 293.8(W)×165.2(H) 344.2(W)×193.7(H) 173.1(W)×109(H) 293.8(W)×165.2(H) 344.2(W)×193.7(H)
Overall dimension (mm) 200(W)×135(H)×13(D) 243.35(W)×162.16(H)×13(D) 319.76(W)×191.24(H)×13(D) 388.16(W)×237.59(H)×13(D) 200(W)×135.1(H)×14(D) 243.35(W)×162.16(H)×14(D) 319.8(W)×191.2(H)×14(D) 388.2(W)×237(H)×14(D) 200(W)×135.1(H)×14(D) 243.35(W)×162.16(H)×14(D) 319.8(W)×191.2(H)×14(D) 388.2(W)×237(H)×14(D)
Packing size (mm) 272(W)×192(H)×57(D) 325(W)×205(H)×70(D) 410(W)×238(H)×70(D) 476(W)×287(H)×72(D) 272(W)×192(H)×57(D) 325(W)×205(H)×70(D) 410(W)×238(H)×70(D) 476(W)×287(H)×72(D) 272(W)×192(H)×57(D) 325(W)×205(H)×70(D) 410(W)×238(H)×70(D) 476(W)×287(H)×72(D)
Weight (kg) Net weight: 0.4kg Gross weight: 0.8kg Net weight: 1.0kg Gross weight: 1.4kg Net weight: 1.4kg Gross weight: 1.9kg Net weight: 1.8kg Gross weight: 2.1kg Net weight: 0.4kg Gross weight: 0.8kg Net weight: 1.0kg Gross weight: 1.4kg Net weight: 1.4kg Gross weight: 1.9kg Net weight: 1.8kg Gross weight: 2.1kg Net weight: 0.4kg Gross weight: 0.8kg Net weight: 1.0kg Gross weight: 1.4kg Net weight: 1.4kg Gross weight: 1.9kg Net weight: 1.8kg Gross weight: 2.1kg
Annex Wall mount, adapter, instruction, certificate Wall mount, adapter, instruction, certificate Wall mount, adapter, instruction, certificate Wall mount, adapter, instruction, certificate Wall mount, adapter, instruction, certificate Wall mount, adapter, instruction, certificate Wall mount, adapter, instruction, certificate Wall mount, adapter, instruction, certificate Wall mount, adapter, instruction, certificate Wall mount, adapter, instruction, certificate Wall mount, adapter, instruction, certificate Wall mount, adapter, instruction, certificate
