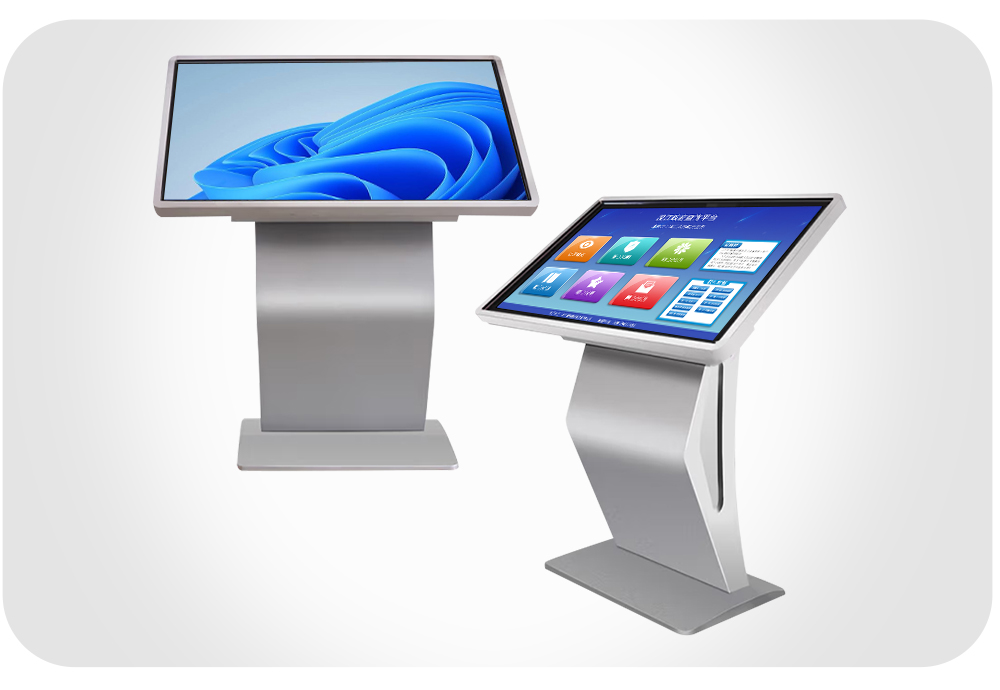

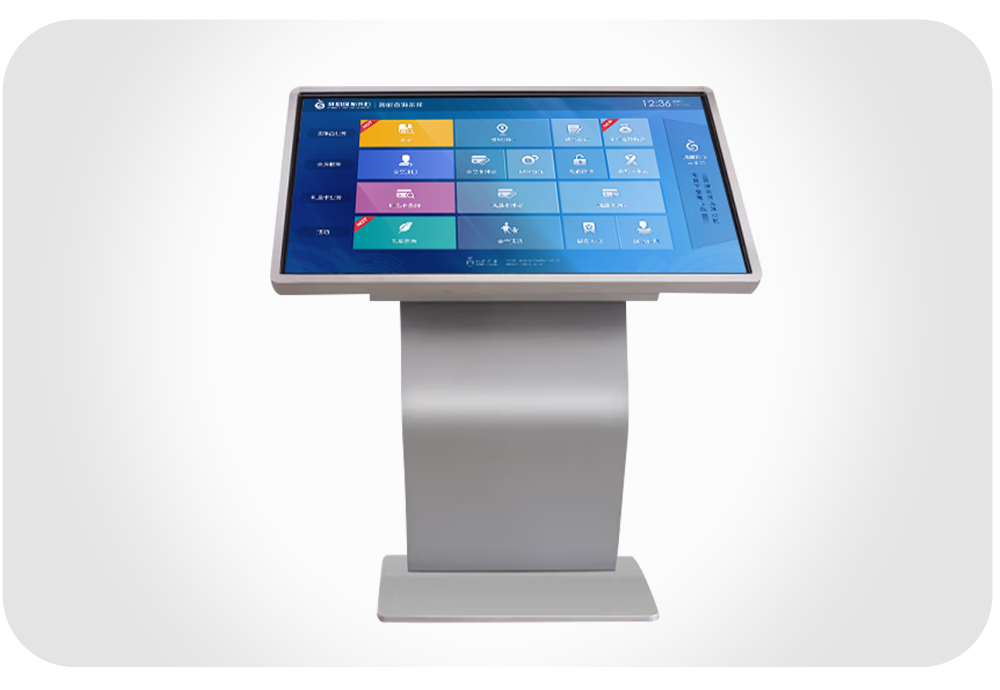

Home > Commercial Display Products > Hanging touch all-in-one machine > Floor-standing touch screen machine > Horizontal infrared touch all-in-one machine
- Product Description
- Computer system parameters
- Android system parameters
- Parameters of the Kirin system
| Category | 43 inches | 49 inches | 55 inches | 65 inches |
| Model | ST43HW-P | ST49HW-P | ST55HW-P | ST65HW-P |
| System Architecture | Single system | Single system | Single system | Single system |
| Operating System | WindoWs 10 | WindoWs 10 | WindoWs 10 | WindoWs 10 |
| Processor | i3-4000M, dual-core 4 thread, frequency 2.4G | i3-4000M, dual-core 4 thread, frequency 2.4G | i3-4000M, dual-core 4 thread, frequency 2.4G | i3-4000M, dual-core 4 thread, frequency 2.4G |
| Memory | 4G | 4G | 4G | 4G |
| Hard disk | 128G | 128G | 128G | 128G |
| Panel | IPS | IPS | IPS | IPS |
| Resolution | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 | 3840 × 2160 |
| Visual Angle | 178o | 178o | 178o | 178o |
| Brightness | 500cd/㎡ | 450cd/㎡ | 450cd/㎡ | 350 cd/㎡ |
| Contrast | 4000:1 | 4000:1 | 4000:1 | 5000:1 |
| Scanning frequency | 60Hz | 60Hz | 60Hz | 4K-60HZ |
| Touch | Infrared touch control | Infrared touch control | Infrared touch control | Infrared touch control |
| Power (W) | 51W | 82W | 92W | 112W |
| Display Size (mm) | 939.2(W)×527.4(H) | 1073.9(W)×604(H) | 1207.6(W)×678.4(H) | 1426.5(W)×801.5(H) |
| Overall dimension (mm) | 1006(W)×601(H)×75(D) | 1140.1(W)×671.6(H)×74.3(D) | 1284(W)×757.3(H)×74.3(D) | 1503.1(W)×882.6(H)×76.8(D) |
| Packing size (mm) | 1075(W)×690(H)×160(D) | 1200(W)×755(H)×160(D) | 1350(W)×848(H)×160(D) | 1565(W)×960(H)×160(D) |
| Weight (kg) | ||||
| Annex | Horizontal base, power cord, certificate/warranty card | Horizontal base, power cord, certificate/warranty card | Horizontal base, power cord, certificate/warranty card | Horizontal base, power cord, certificate/warranty card |
| Category | 43 inches | 49 inches | 55 inches | 65 inches |
| Model | ST43HW-A | ST49HW-A | ST55HW-A | ST65HW-A |
| System Architecture | Single system | Single system | Single system | Single system |
| Operating System | Android 11.0 | Android 11.0 | Android 11.0 | Android 11.0 |
| Processor | Quad-core ARM Cortex-A55 architecture, frequency 1.8GHz | Quad-core ARM Cortex-A55 architecture, frequency 1.8GHz | Quad-core ARM Cortex-A55 architecture, frequency 1.8GHz | Quad-core ARM Cortex-A55 architecture, frequency 2.0GHz |
| Memory | 2G | 2G | 2G | 2G |
| Hard disk | 32G | 32G | 32G | 32G |
| Panel | IPS | IPS | IPS | IPS |
| Resolution | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 | 3840 × 2160 |
| Visual Angle | 178o | 178o | 178o | 178o |
| Brightness | 500cd/㎡ | 450cd/㎡ | 450cd/㎡ | 350cd/㎡ |
| Contrast | 4000:1 | 4000:1 | 4000:1 | 5000:1 |
| Scanning frequency | 60Hz | 60Hz | 60Hz | 4K-60Hz |
| Touch | Infrared touch control | Infrared touch control | Infrared touch control | Infrared touch control |
| Power (W) | 51W | 82W | 92W | 112W |
| Display Size (mm) | 939.2(W)×527.4(H) | 1073.9(W)×604(H) | 1207.6(W)×678.4(H) | 1426.5(W)×801.5(H) |
| Overall dimension (mm) | 1006(W)×601(H)×75(D) | 1140.1(W)×671.6(H)×74.3(D) | 1284(W)×757.3(H)×74.3(D) | 1503.1(W)×882.6(H)×76.8(D) |
| Packing size (mm) | 1075(W)×690(H)×160(D) | 1200(W)×755(H)×160(D) | 1350(W)×848(H)×160(D) | 1565(W)×960(H)×160(D) |
| Weight (kg) | ||||
| Annex | Horizontal base, power cord, manual, certificate/warranty card, remote control, battery | Horizontal base, power cord, manual, certificate/warranty card, remote control, battery | Horizontal base, power cord, manual, certificate/warranty card, remote control, battery | Horizontal base, power cord, manual, certificate/warranty card, remote control, battery |
| Category | 43 inches | 49 inches | 55 inches | 65 inches |
| Model | ST43HW-GP | ST49HW-GP | ST55HW-GP | ST65HW-GP |
| System Architecture | Single system | Single system | Single system | Single system |
| Operating System | Genuine Kirin Operating System | Genuine Kirin Operating System | Genuine Kirin Operating System | Genuine Kirin Operating System |
| Processor | KC6000-6C-U6580 eight nuclear 2.5G main frequency | KC6000-6C-U6580 eight nuclear 2.5G main frequency | KC6000-6C-U6580 eight nuclear 2.5G main frequency | KC6000-6C-U6580 eight nuclear 2.5G main frequency |
| Memory | 8G | 8G | 8G | 8G |
| Hard disk | 128G | 128G | 128G | 128G |
| Panel | IPS | IPS | IPS | IPS |
| Resolution | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 | 3840 × 2160 |
| Visual Angle | 178o | 178o | 178o | 178o |
| Brightness | 500cd/㎡ | 450cd/㎡ | 450cd/㎡ | 350 cd/㎡ |
| Contrast | 4000:1 | 4000:1 | 4000:1 | 5000:1 |
| Scanning frequency | 60Hz | 60Hz | 60Hz | 4K-60HZ |
| Touch | Infrared touch control | Infrared touch control | Infrared touch control | Infrared touch control |
| Power (W) | 51W | 82W | 92W | 112W |
| Display Size (mm) | 939.2(W)×527.4(H) | 1073.9(W)×604(H) | 1207.6(W)×678.4(H) | 1426.5(W)×801.5(H) |
| Overall dimension (mm) | 1006(W)×601(H)×75(D) | 1140.1(W)×671.6(H)×74.3(D) | 1284(W)×757.3(H)×74.3(D) | 1503.1(W)×882.6(H)×76.8(D) |
| Packing size (mm) | 1075(W)×690(H)×160(D) | 1200(W)×755(H)×160(D) | 1350(W)×848(H)×160(D) | 1565(W)×960(H)×160(D) |
| Weight (kg) | ||||
| Annex | Horizontal base, power cord, certificate/warranty card | Horizontal base, power cord, certificate/warranty card | Horizontal base, power cord, certificate/warranty card | Horizontal base, power cord, certificate/warranty card |
