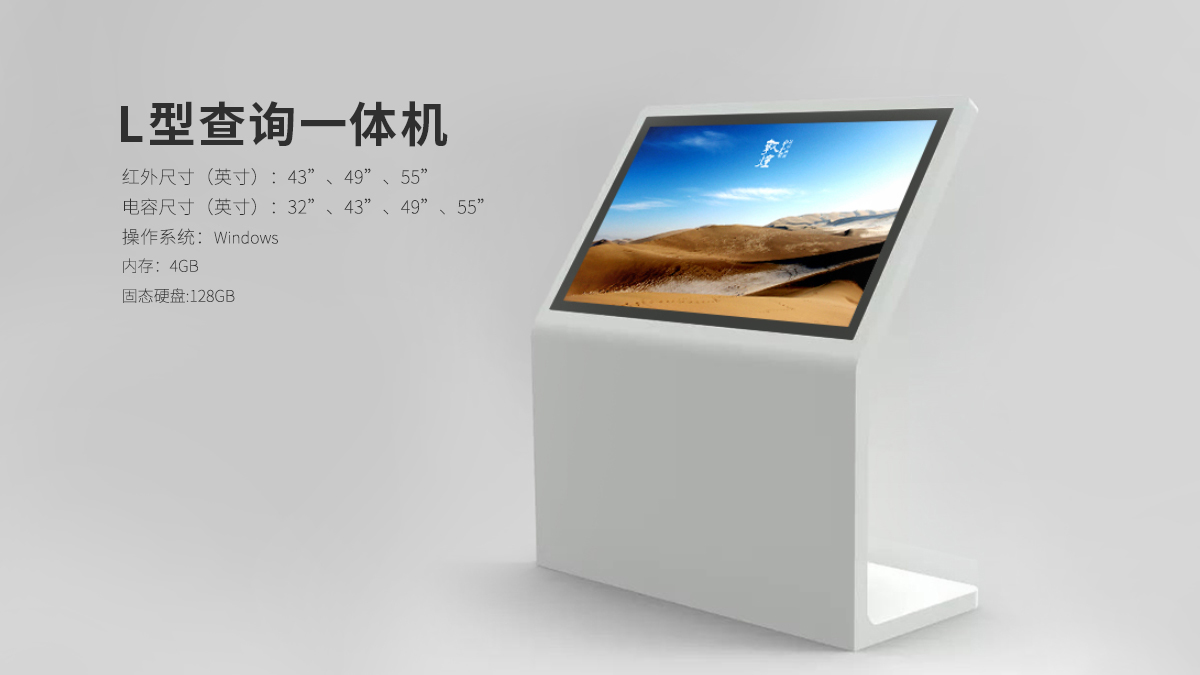

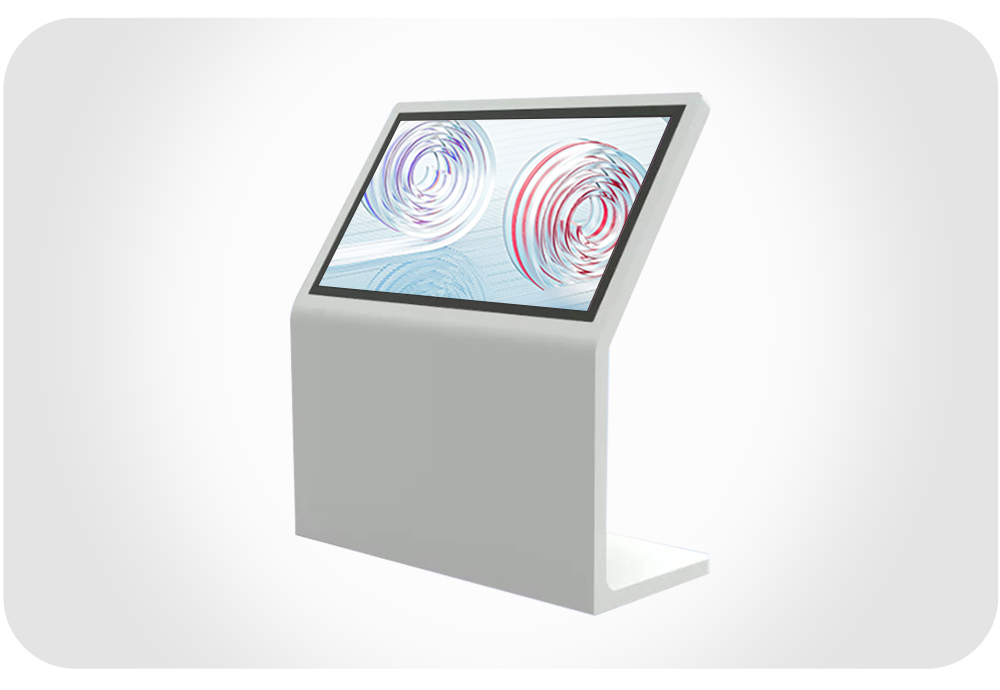

Home > Commercial Display Products > Hanging touch all-in-one machine > Floor-standing touch screen machine > L-shaped horizontal query all-in-one machine (Capacitor/infrared)
- Product Description
- Computer system parameters
- Android system parameters
| Category | 43 inches | 49 inches | 55 inches | 65 inches |
| Model | ST43HXW-P | ST49HXW-P | ST55HXW-P | ST65HXW-P |
| System Architecture | Single system | Single system | Single system | Single system |
| Operating System | WindoWs 10 | WindoWs 10 | WindoWs 10 | WindoWs 10 |
| Processor | i3-4000M, dual-core 4 thread, frequency 2.4G | i3-4000M, dual-core 4 thread, frequency 2.4G | i3-4000M, dual-core 4 thread, frequency 2.4G | i3-4000M, dual-core 4 thread, frequency 2.4G |
| Memory | 4G | 4G | 4G | 4G |
| Hard disk | 128G | 128G | 128G | 128G |
| Panel | IPS | IPS | IPS | IPS |
| Resolution | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 | 3840 × 2160 |
| Visual Angle | 178o | 178o | 178o | 178o |
| Brightness | 500cd/㎡ | 450cd/㎡ | 450cd/㎡ | 350 cd/㎡ |
| Contrast | 4000:1 | 4000:1 | 4000:1 | 5000:1 |
| Scanning frequency | 60Hz | 60Hz | 60Hz | 4K-60HZ |

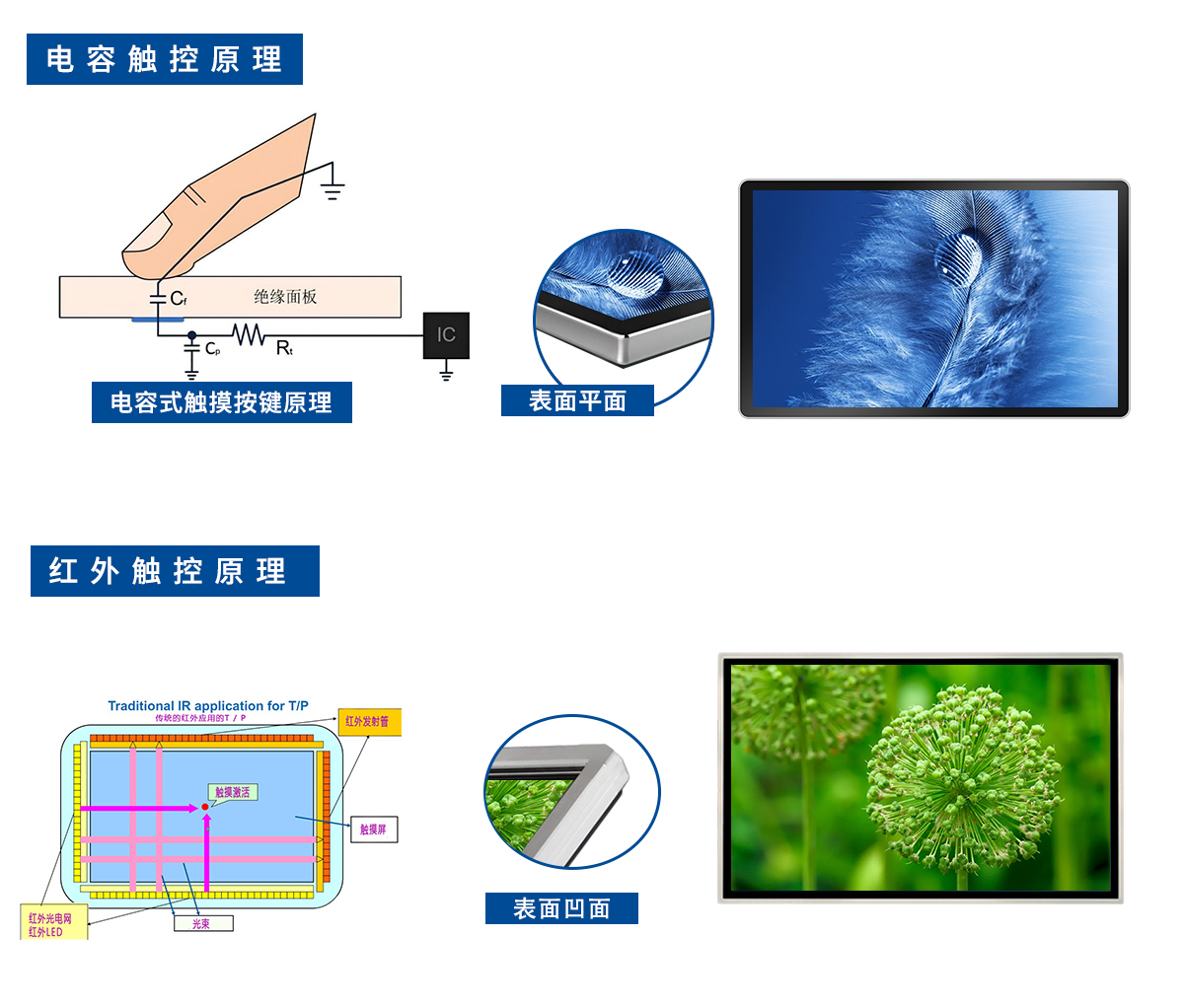

| Touch | Infrared touch control | Infrared touch control | Infrared touch control | Infrared touch control |
| Power (W) | 51W | 82W | 92W | 112W |
| Display Size (mm) | 939.2(W)×527.4(H) | 1073.9(W)×604(H) | 1207.6(W)×678.4(H) | 1426.5(W)×801.5(H) |
| Overall dimension (mm) | 1070(W)×1350(H)×600(D) | 1221.4(W)×1400(H)×600(D) | 1372.8(W)×1500(H)×600(D) | 1575(W)×1500(H)×600(D) |
| Packing size (mm) | 1280(W)×1560(H)×810(D) | 1431(W)×1610(H)×710(D) | 1583(W)×1600(H)×810(D) | 1683(W)×1600(H)×810(D)m |
| Weight (kg) | ||||
| Annex | Power cord, certificate/warranty card | Power cord, certificate/warranty card | Power cord, certificate/warranty card | Power cord, certificate/warranty card |
| Category | 32 inches | 43 inches | 49 inches | 55 inches | 65 inches |
| Model | ST32RXW-P | ST43RXW-P | ST49RXW-P | ST55RXW-P | ST65RXW-P |
| System Architecture | Single system | Single system | Single system | Single system | Single system |
| Operating System | WindoWs 10 | WindoWs 10 | WindoWs 10 | WindoWs 10 | WindoWs 10 |
| Processor | i3-4000M, dual-core 4 thread, frequency 2.4G | i3-4000M, dual-core 4 thread, frequency 2.4G | i3-4000M, dual-core 4 thread, frequency 2.4G | i3-4000M, dual-core 4 thread, frequency 2.4G | i3-4000M, dual-core 4 thread, frequency 2.4G |
| Memory | 4G | 4G | 4G | 4G | 4G |
| Hard disk | 128G | 128G | 128G | 128G | 128G |
| Panel | IPS | IPS | IPS | IPS | IPS |
| Resolution | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 | 3840 × 2160 |
| Visual Angle | 178o | 178o | 178o | 178o | 178o |
| Brightness | 450cd/㎡ | 500cd/㎡ | 450cd/㎡ | 450cd/㎡ | 350 cd/㎡ |
| Contrast | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 5000:1 |
| Scanning frequency | 60Hz | 60Hz | 60Hz | 60Hz | 4K-60HZ |
| Touch | Capacitive touch | Capacitive touch | Capacitive touch | Capacitive touch | Capacitive touch |
| Power (W) | 39W | 51W | 82W | 92W | 112W |
| Display Size (mm) | 697.6(W)×393.5(H) | 939.2(W)×527.4(H) | 1073.9(W)×604(H) | 1207.6(W)×678.4(H) | 1426.5(W)×801.5(H) |
| Overall dimension (mm) | 820(W)×1250(H)×600(D) | 1070(W)×1350(H)×600(D) | 1191(W)×1400(H)×600(D) | 1332(W)×1500(H)×600(D) | 1575(W)×1500(H)×600(D) |
| Packing size (mm) | 1030(W)×1460(H)×810(D) | 1280(W)×1560(H)×810(D) | 1431(W)×1610(H)×710(D) | 1583(W)×1600(H)×810(D) | 1683(W)×1600(H)×810(D) |
| Weight (kg) | |||||
| Annex | Power cord, certificate/warranty card | Power cord, certificate/warranty card | Power cord, certificate/warranty card | Power cord, certificate/warranty card | Power cord, certificate/warranty card |
| Category | 43 inches | 49 inches | 55 inches | 65 inches |
| Model | ST43HXW-A | ST49HXW-A | ST55HXW-A | ST65HXW-A |
| System Architecture | Single system | Single system | Single system | Single system |
| Operating System | Android 11.0 | Android 11.0 | Android 11.0 | Android 11.0 |
| Processor | Quad-core ARM Cortex-A55 architecture, frequency 1.8GHz | Quad-core ARM Cortex-A55 architecture, frequency 1.8GHz | Quad-core ARM Cortex-A55 architecture, frequency 1.8GHz | Quad-core ARM Cortex-A55 architecture, frequency 2.0GHz |
| Memory | 2G | 2G | 2G | 2G |
| Hard disk | 32G | 32G | 32G | 32G |
| Panel | IPS | IPS | IPS | IPS |
| Resolution | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 | 3840 × 2160 |
| Visual Angle | 178o | 178o | 178o | 178o |
| Brightness | 500cd/㎡ | 450cd/㎡ | 450cd/㎡ | 350cd/㎡ |
| Contrast | 4000:1 | 4000:1 | 4000:1 | 5000:1 |
| Scanning frequency | 60Hz | 60Hz | 60Hz | 4K-60Hz |
| Touch | Infrared touch control | Infrared touch control | Infrared touch control | Infrared touch control |
| Power (W) | 51W | 82W | 92W | 112W |
| Display Size (mm) | 939.2(W)×527.4(H) | 1073.9(W)×604(H) | 1207.6(W)×678.4(H) | 1426.5(W)×801.5(H) |
| Overall dimension (mm) | 1070(W)×1350(H)×600(D) | 1221.4(W)×1400(H)×600(D) | 1372.8(W)×1500(H)×600(D) | 1575(W)×1500(H)×600(D) |
| Packing size (mm) | 1280(W)×1560(H)×810(D) | 1431(W)×1610(H)×710(D) | 1553(W)×1600(H)×810(D) | 1700(W)×1600(H)×810(D) |
| Weight (kg) | ||||
| Annex | Power cord, manual, certificate/warranty card, remote control, battery | Power cord, manual, certificate/warranty card, remote control, battery | Power cord, manual, certificate/warranty card, remote control, battery | Power cord, manual, certificate/warranty card, remote control, battery |
| Category | 32 inches | 43 inches | 49 inches | 55 inches | 65 inches |
| Model | ST32RXW-A | ST43RXW-A | ST49RXW-A | ST55RXW-A | ST65RXW-A |
| System Architecture | Single system | Single system | Single system | Single system | Single system |
| Operating System | Android 11.0 | Android 11.0 | Android 11.0 | Android 11.0 | Android 11.0 |
| Processor | Quad-core ARM Cortex-A55 architecture, frequency 1.8GHz | Quad-core ARM Cortex-A55 architecture, frequency 1.8GHz | Quad-core ARM Cortex-A55 architecture, frequency 1.8GHz | Quad-core ARM Cortex-A55 architecture, frequency 1.8GHz | Quad-core ARM Cortex-A55 architecture, frequency 2.0GHz |
| Memory | 2G | 2G | 2G | 2G | 2G |
| Hard disk | 32G | 32G | 32G | 32G | 32G |
| Panel | IPS | IPS | IPS | IPS | IPS |
| Resolution | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 | 3840 × 2160 |
| Brightness | 450cd/㎡ | 500cd/㎡ | 450cd/㎡ | 450cd/㎡ | 350 cd/㎡ |
| Visual Angle | 178o | 178o | 178o | 178o | 178o |
| Contrast | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 5000:1 |
| Scanning frequency | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz |
| Touch | Capacitive touch | Capacitive touch | Capacitive touch | Capacitive touch | Capacitive touch |
| Power (W) | 39W | 51W | 82W | 92W | 112W |
| Display Size (mm) | 697.6(W)×393.5(H) | 939.2(W)×527.4(H) | 1073.9(W)×604(H) | 1207.6(W)×678.4(H) | 1426.5(W)×801.5(H) |
| Overall dimension (mm) | 820(W)×1250(H)×600(D) | 1070(W)×1350(H)×600(D) | 1191(W)×1400(H)×600(D) | 1332(W)×1500(H)×600(D) | 1575(W)×1500(H)×600(D) |
| Packing size (mm) | 1030(W)×1460(H)×810(D) | 1280(W)×1560(H)×810(D) | 1431(W)×1610(H)×710(D) | 1583(W)×1600(H)×810(D) | 1700(W)×1600(H)×810(D) |
| Weight (kg) | |||||
| Annex | Power cord, manual, certificate/warranty card, remote control, battery | Power cord, manual, certificate/warranty card, remote control, battery | Power cord, manual, certificate/warranty card, remote control, battery | Power cord, manual, certificate/warranty card, remote control, battery | Power cord, manual, certificate/warranty card, remote control, battery |
