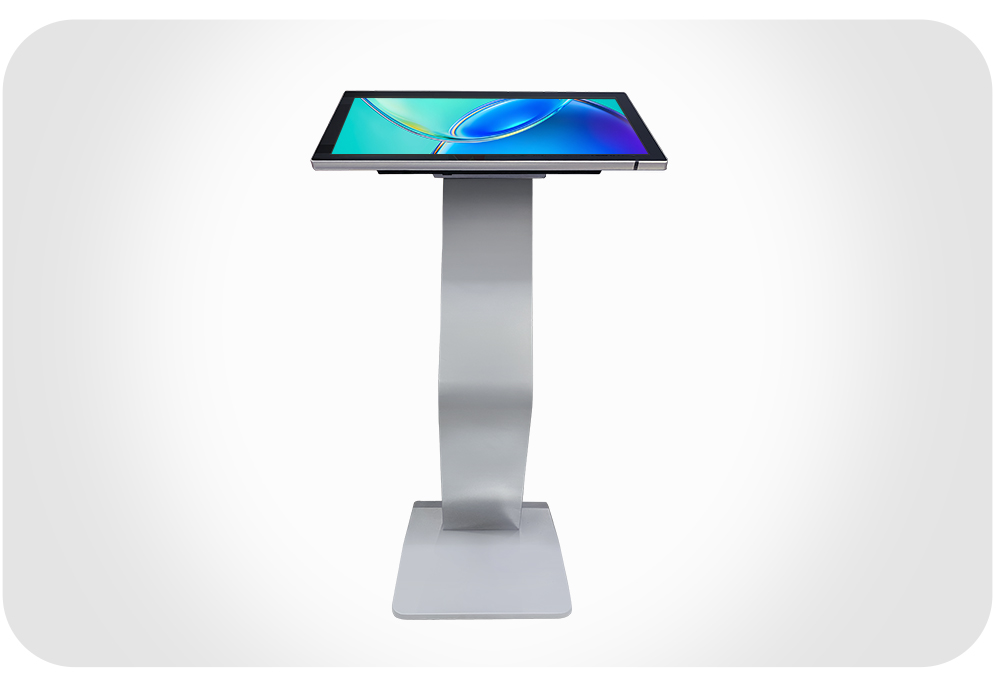

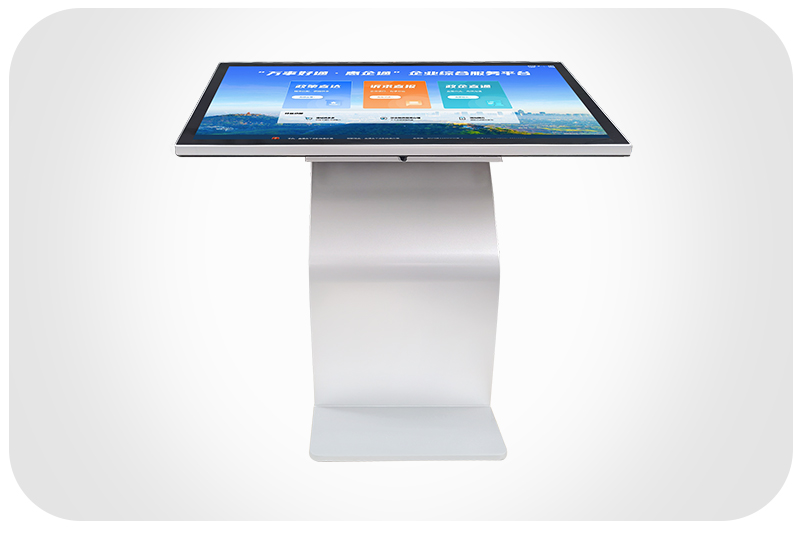

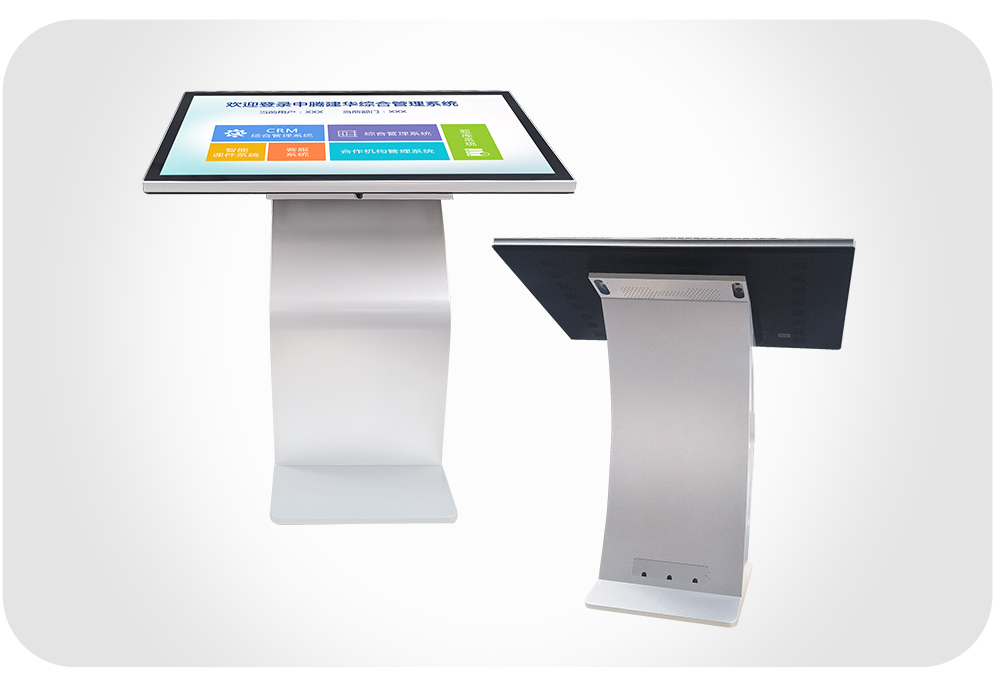

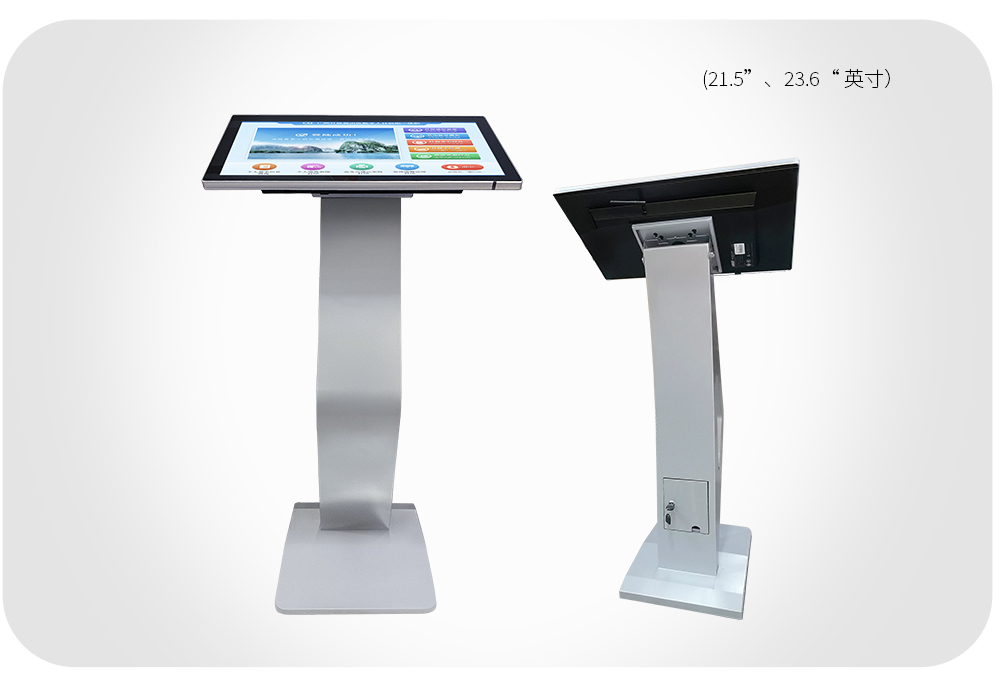

Horizontal capacitive touch query machine

Horizontal capacitive touch query machine

Dimensions: 32 ", 43 ", 49 ", 55 ", 65"
Operating system: Android
Memory: 2GB
Storage capacity :32GB
Operating system: Windows
Memory: 4GB
Solid-state drive :128GB
  • Product Description
  • Computer system parameters
  • Android system parameters
  • Parameters of the Kirin system

Category 21.5 inches 23.6 inches 32 inches 43 inches 49 inches 55 inches 65 inches
Model ST215RW-P ST236RW-P ST32RW-P ST43RW-P ST49RW-P ST55RW-P ST65RW-P
System Architecture Single system Single system Single system Single system Single system Single system Single system
Operating System WindoWs 10 WindoWs 10 WindoWs 10 WindoWs 10 WindoWs 10 WindoWs 10 WindoWs 10
Processor i3-4000M, dual-core 4 thread, frequency 2.4G i3-4000M, dual-core 4 thread, frequency 2.4G i3-4000M, dual-core 4 thread, frequency 2.4G i3-4000M, dual-core 4 thread, frequency 2.4G i3-4000M, dual-core 4 thread, frequency 2.4G i3-4000M, dual-core 4 thread, frequency 2.4G i3-4000M, dual-core 4 thread, frequency 2.4G
Memory 4G 4G 4G 4G 4G 4G 4G
Hard disk 128G 128G 128G 128G 128G 128G 128G
Panel IPS IPS IPS IPS IPS IPS IPS
Resolution 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 3840 × 2160
Visual Angle 178o 178o 178o 178o 178o 178o 178o
Brightness 450cd/㎡ 450cd/㎡ 450cd/㎡ 500cd/㎡ 450cd/㎡ 450cd/㎡ 350 cd/㎡
Contrast 4000:1 4000:1 4000:1 4000:1 4000:1 4000:1 5000:1
Scanning frequency 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 4K-60HZ
Touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch
Power (W) 19W 22W 39W 51W 82W 92W 112W
Display Size (mm) 476.8(W)×268.3(H) 521.2(W)×293.2(H) 697.6(W)×393.5(H) 939.2(W)×527.4(H) 1073.9(W)×604(H) 1207.6(W)×678.4(H) 1426.5(W)×801.5(H)
Overall dimension (mm) 521.8(W)×318.4(H)×55.1(D) 575(W)×350(H)×55.1(D) 756.8 length) × 451.8(H)× 58.8(D) 1006(W)×601(H)×83.5(D) 1140.6(W)×671.6(H)×67.8(D) 1284(W)×757.3(H)×68.3(D) 1503.6(W)×882.6(H)×70.3(D)
Packing size (mm) 585(W)×380(H)×110(D) 635(W)×415(H)×110(D) 832(W)×530(H)×150(D) 1075(W)×690(H)×160(D) 1200(W)×755(H)×160(D) 1350(W)×848(H)×160(D) 1601(W)×960(H)×160(D)
Weight (kg)
Annex Horizontal base, power cord, certificate/warranty card Horizontal base, power cord, certificate/warranty card Horizontal base, power cord, certificate/warranty card Horizontal base, power cord, certificate/warranty card Horizontal base, power cord, certificate/warranty card Horizontal base, power cord, certificate/warranty card Horizontal base, power cord, certificate/warranty card



Category 21.5 inches 23.6 inches 32 inches 43 inches 49 inches 55 inches 65 inches
Model ST215RW-A ST236RW-A ST32RW-A ST43RW-A ST49RW-A ST55RW-A ST65RW-A
System Architecture Single system Single system Single system Single system Single system Single system Single system
Operating System Android 11.0 Android 11.0 Android 11.0 Android 11.0 Android 11.0 Android 11.0 Android 11.0
Processor Quad-core ARM Cortex-A55 architecture, frequency 1.8GHz Quad-core ARM Cortex-A55 architecture, frequency 1.8GHz Quad-core ARM Cortex-A55 architecture, frequency 1.8GHz Quad-core ARM Cortex-A55 architecture, frequency 1.8GHz Quad-core ARM Cortex-A55 architecture, frequency 1.8GHz Quad-core ARM Cortex-A55 architecture, frequency 1.8GHz Quad-core ARM Cortex-A55 architecture, frequency 2.0GHz
Memory 2G 2G 2G 2G 2G 2G 2G
Hard disk 32G 32G 32G 32G 32G 32G 32G
Panel IPS IPS IPS IPS IPS IPS IPS
Resolution 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 3840 × 2160
Brightness 450cd/㎡ 450cd/㎡ 450cd/㎡ 500cd/㎡ 450cd/㎡ 450cd/㎡ 350 cd/㎡
Visual Angle 178o 178o 178o 178o 178o 178o 178o
Contrast 4000:1 4000:1 4000:1 4000:1 4000:1 4000:1 5000:1
Scanning frequency 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz
Touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch
Power (W) 19W 22W 39W 51W 82W 92W 112W
Display Size (mm) 476.8(W)×268.3(H) 521.2(W)×293.2(H) 697.6(W)×393.5(H) 939.2(W)×527.4(H) 1073.9(W)×604(H) 1207.6(W)×678.4(H) 1426.5(W)×801.5(H)
Overall dimension (mm) 521.8(W)×318.4(H)×55.1(D) 575(W)×350(H)×55.1(D) 756.8(W)×451.8(H)×58.8(D) 1006(W)×601(H)×83.5(D) 1140.6(W)×671.6(H)×67.8(D) 1284(W)×757.3(H)×68.3(D) 1503.6(W)×882.6(H)×70.3(D)
Packing size (mm) 585(W)×380(H)×110(D) 635(W)×415(H)×110(D) 832(W)×530(H)×150(D) 1075(W)×690(H)×160(D) 1200(W)×755(H)×160(D) 1200(W)×755(H)×160(D) 1565(W)×960(H)×160(D)
Weight (kg)
Annex Horizontal base, power cord, manual, certificate/warranty card, remote control, battery Horizontal base, power cord, manual, certificate/warranty card, remote control, battery Horizontal base, power cord, manual, certificate/warranty card, remote control, battery Horizontal base, power cord, manual, certificate/warranty card, remote control, battery Horizontal base, power cord, manual, certificate/warranty card, remote control, battery Horizontal base, power cord, manual, certificate/warranty card, remote control, battery Horizontal base, power cord, manual, certificate/warranty card, remote control, battery
Category 21.5 inches 23.6 inches 32 inches 43 inches 49 inches 55 inches 65 inches
Model ST215RW-GP ST236RW-GP ST32RW-GP ST43RW-GP ST49RW-GP ST55RW-GP ST65RW-GP
System Architecture Single system Single system Single system Single system Single system Single system Single system
Operating System Genuine Kirin Operating System Genuine Kirin Operating System Genuine Kirin Operating System Genuine Kirin Operating System Genuine Kirin Operating System Genuine Kirin Operating System Genuine Kirin Operating System
Processor KC6000-6C-U6580 eight nuclear 2.5G main frequency KC6000-6C-U6580 eight nuclear 2.5G main frequency KC6000-6C-U6580 eight nuclear 2.5G main frequency KC6000-6C-U6580 eight nuclear 2.5G main frequency KC6000-6C-U6580 eight nuclear 2.5G main frequency KC6000-6C-U6580 eight nuclear 2.5G main frequency KC6000-6C-U6580 eight nuclear 2.5G main frequency
Memory 8G 8G 8G 8G 8G 8G 8G
Hard disk 128G 128G 128G 128G 128G 128G 128G
Panel IPS IPS IPS IPS IPS IPS IPS
Resolution 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 3840 × 2160
Visual Angle 178o 178o 178o 178o 178o 178o 178o
Brightness 450cd/㎡ 450cd/㎡ 450cd/㎡ 500cd/㎡ 450cd/㎡ 450cd/㎡ 350 cd/㎡
Contrast 4000:1 4000:1 4000:1 4000:1 4000:1 4000:1 5000:1
Scanning frequency 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 4K-60HZ
Touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch Capacitive touch
Power (W) 19W 22W 39W 51W 82W 92W 112W
Display Size (mm) 476.8(W)×268.3(H) 521.2(W)×293.2(H) 697.6(W)×393.5(H) 939.2(W)×527.4(H) 1073.9(W)×604(H) 1207.6(W)×678.4(H) 1426.5(W)×801.5(H)
Overall dimension (mm) 521.8(W)×318.4(H)×55.1(D) 575(W)×350(H)×55.1(D) 756.8 length) × 451.8(H)× 58.8(D) 1006(W)×601(H)×83.5(D) 1140.6(W)×671.6(H)×67.8(D) 1284(W)×757.3(H)×68.3(D) 1503.6(W)×882.6(H)×70.3(D)
Packing size (mm) 585(W)×380(H)×110(D) 635(W)×415(H)×110(D) 832(W)×530(H)×150(D) 1075(W)×690(H)×160(D) 1200(W)×755(H)×160(D) 1350(W)×848(H)×160(D) 1601(W)×960(H)×160(D)
Weight (kg)
Annex Horizontal base, power cord, certificate/warranty card Horizontal base, power cord, certificate/warranty card Horizontal base, power cord, certificate/warranty card Horizontal base, power cord, certificate/warranty card Horizontal base, power cord, certificate/warranty card Horizontal base, power cord, certificate/warranty card Horizontal base, power cord, certificate/warranty card
